How to debug the DVK light development board via CKLink:

1. Connect to the PC via USB.

GPIO 1   TCK

GPIO 3   TDI

GPIO 2   TDO

GPIO 0   TMS

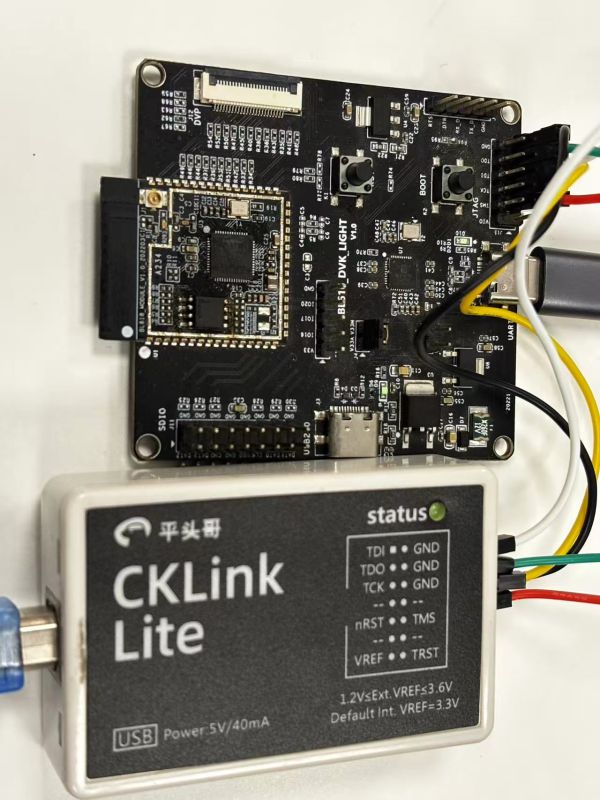

BL616DVKLight_CKLinkLite


2. Perform GDB debugging.

Using Ubuntu as an example, run the following two commands separately:DebugServerConsole

riscv64-unknown-elf-gdb *.elf

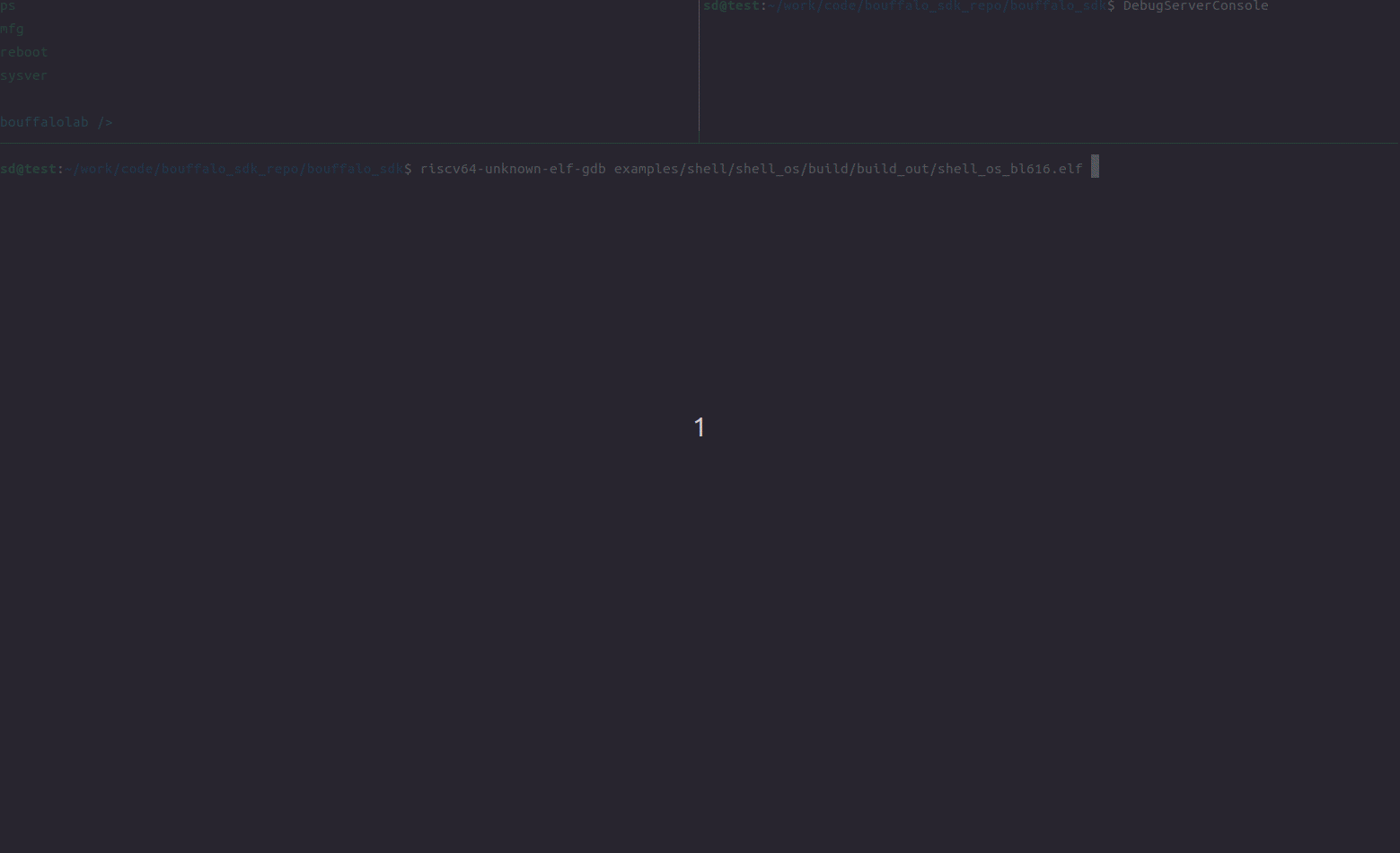

BL616DVKLight_CKLinkLite
